Woven aramid fabric
Para-aramid fabrics in plain, twill and satin weaves, with selected listed weights and widths.
Woven · Unidirectional · Cord
Aramid Fabrics
Aramid fabrics in woven, unidirectional and dipped cord constructions.
Source aramid reinforcement by fabric construction and intended application. Our range includes woven para-aramid fabrics, unidirectional fabrics and dipped cord fabrics. Start with the selected models below, or send your required yarn, width and quantity for review.
For a useful quotation, include your specification, quantity and delivery country.
01 / Material selection
Selected specifications
Selected listed options to help you prepare an enquiry. Confirm the final specification in your quotation.
| Model | Construction | Areal weight | Width |
|---|---|---|---|
| YJ-1670-P170 | Plain woven | 170 g/m² | 1,000–1,500 mm |
| YJ-1670-T220 | Twill woven | 220 g/m² | 1,000–1,500 mm |
| YJ-1270-4H170 | 4H satin woven | 170 g/m² | 1,000–1,500 mm |
| YJ-AK-40 | Unidirectional | 280 g/m² | 500 mm |
| YJ-AK-60 | Unidirectional | 415 g/m² | 500 mm |
Choose the construction for your process and specify any required test method. A fabric name or weight alone does not establish a protection rating.
02 / Product range
Find the right format

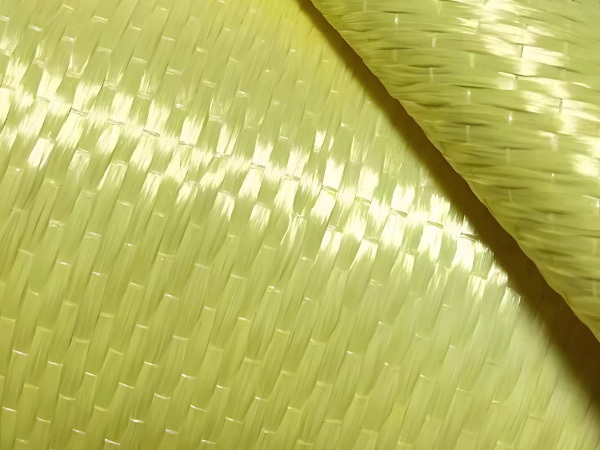

Unidirectional aramid fabric
Listed options include 280, 415, 623 and 830 g/m² fabrics, each 500 mm wide.
Dipped aramid cord fabric
Cord fabric for tire and rubber reinforcement sourcing. Specify yarn, cord construction, width and inspection requirements.
03 / Before you enquire
Buying questions
Start with the specification your application needs.
Discuss your requirementsHow do I choose an aramid fabric format?
Identify the intended application and process first, then specify woven, unidirectional or cord construction. Include the required areal weight or yarn specification and width in your enquiry.
Can I request a particular yarn brand or grade?
Yes. Include the required brand or grade and any traceability documents. The yarn specification and information available for the quoted product need to be confirmed with your enquiry.
Can these fabrics be selected by a protection rating?
Do not infer a ballistic, flame or other protection rating from the fabric name or weight. State your required test method and end-use requirements so the relevant product information can be reviewed.
